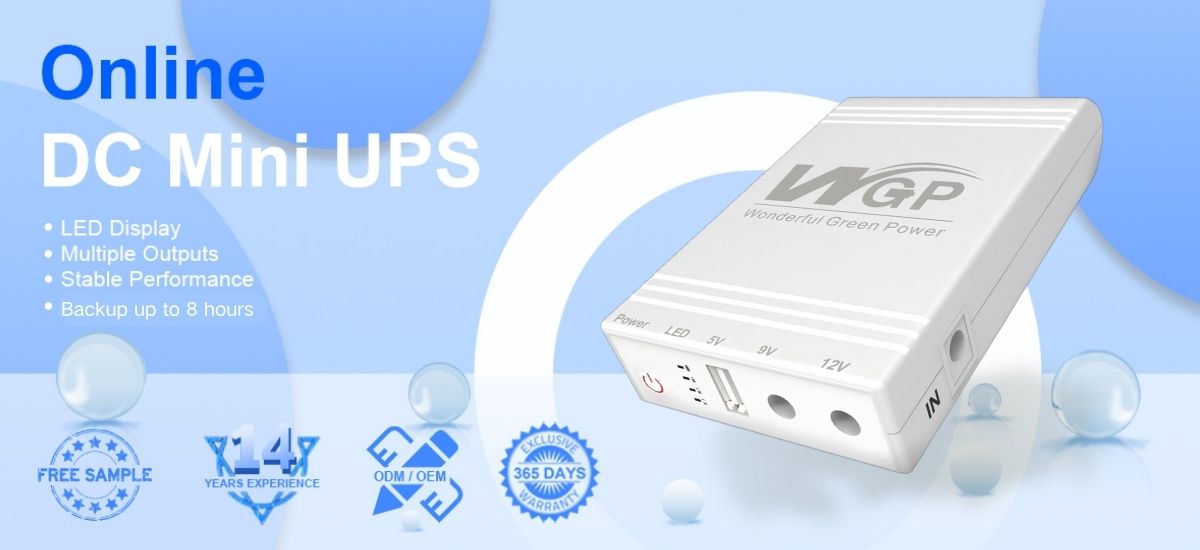

MINI UPS Multi-output 5V9V12V DC ups for camera modem

Short Description:

103A mini ups is a large-capacity UPS with multiple outputs. It has DC5V, 9V, and 12V output ports. It can power GPON ONT 12V, WIFI ROUTER, CAMERA, and 5V smartphones. It has a large capacity of 10400mAh and can be used for routers for more than 8 hours. The battery uses A-grade cells with high cell quality and long service life.

Send email to us

Product Detail

FAQ

Product Tags

Product Display

Specification

Product name	WGP 103	Product number	WGP103-5912
Input voltage	12V2A	recharging current	0.6~0.8A
charging time	about 6h-8h	output voltage current	5V 2A+ 9V 1A +12V 1A
Output Power	7.5W-25W	Maximum output power	25W
protection type	Overcharge, overdischarge, overcurrent, short circuit protection	Working temperature	0℃~45℃
Input Features	DC12v2A	Switch mode	Single machine starts, double-click to close
Output port characteristics	USB5V 9V/12V	package contens	MINI UPS1、Instruction Manul1、Y Cable（5525-5525）1、DC Cable（5525公-5525）1、DC Connector （5525-35135）*1
Product capacity	7.4V/5200AMH/38.48WH	Product color	white
Single cell capacity	3.7/2600amh+3.7v/	Product Size	1167324mm
Cell type	18650	single product	248g
Cell cycle life	500	Gross weight of a single product	346g
Series and parallel mode	2s2p	FCL product weight	13kg
Cell quantity	4PCS	Carton size	422324cm
Single product packaging size	2058031mm	Qty	36PCS

Product Details

This mini ups has 5V 9V 12V output ports, which can power wireless routers, CCTV Cameras, router ONTs, and multiple output devices at the same time. It has a large capacity of 10400mAh and a real battery, which can power devices for more than 8 hours. It has a built-in protection board, so there is no need to worry about battery overcurrent or short circuit.

The 103 product has three output ports, namely 5V/9V/12V output ports, which are specially designed to power WiFi routers, ONUs, 5V cameras and other devices. It can power multiple devices for 6-8 hours at the same time, and comes with a one-to-two DC cable to support the use of more devices!

A UPS with three output ports can not only power routers, ONUs and other devices, but also USB devices, such as 5V cameras, 5V smartphones, 5V fans and other devices. The MINI UPS has three outputs to meet the power needs of multiple devices!

Application Scenario

The 10400mAh capacity is the real capacity, which can power a wifi router for more than 6-8 hours. In the global market, this UPS is also very popular among users. For example, it is very popular in Latin America, Africa, the Middle East and other regions. The current popularity is also rising. If you are also interested, you can click to consult us and communicate with us!
